Wavenet - 30 Inch Plastic Enclosure Wi‐Fi Friedly with Lockable Hinged Vented Door for Home Structured Low Voltage Wiring - White

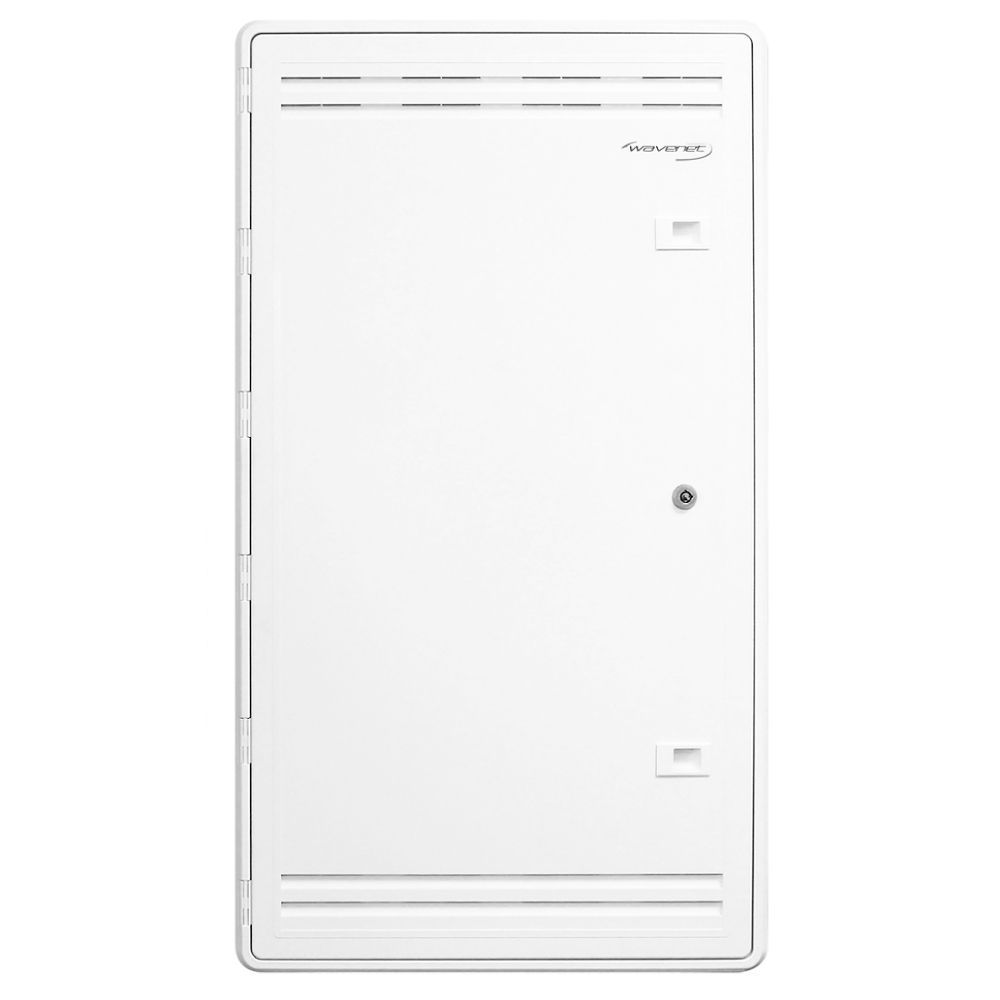

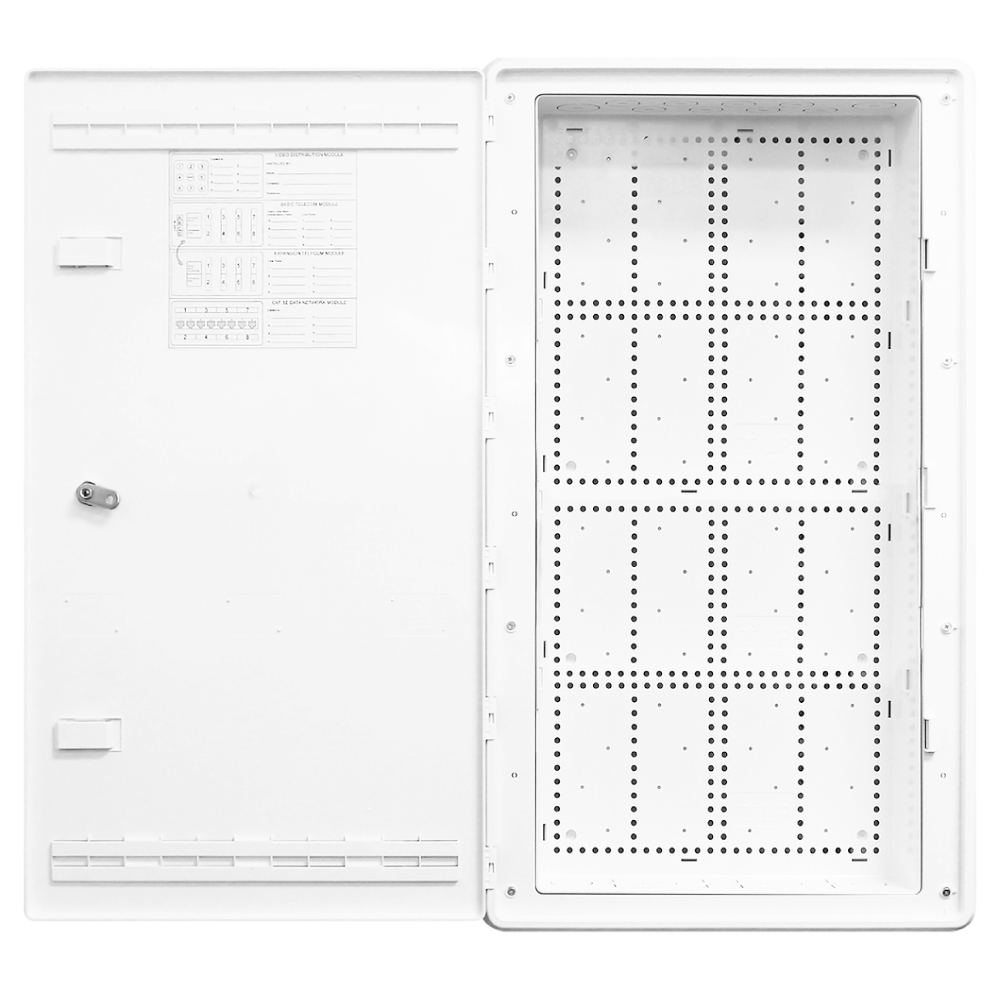

30” Empty Structured Wiring Enclosure(WHWS30AEP-S)
These 30-inch versatile enclosures allow you to manage and distribute a full range of voice, data networking, audio, and video wiring from one central location. Designed for home use with a wireless network and proudly made in the USA.
The enclosure mounts easily for both surface and recessed applications, and the swing door is equipped with extra venting along the horizontal plane for superior heat dissipation. The door is lockable with a slide lock and an optional keyed lock.
Trim ring is integrated with door and conceals drywall or wall cutouts for a clean finish, smooth transition, and professional installation. The door can swing left or right with a 180° range for easy access to your equipment and wiring.
The enclosure and doors are made with UL-rated ABS plastic, lightweight and durable, to prevent cracking. The variable mounting system offers versatile module mounting options. Also has a universal mounting pattern to accommodate and most manufacturers’ active modules.
Features:
Surface or flush mounting
Horizontal & vertical mounting hole patterns
Door hidden vent holes
Hinged door with trim ring
Reversible door and Lockable
Top & bottom knockouts for cable entry & exit
Two Outlet Knock-Outs for power outlets
Wi-Fi signals friendly
Wiring location label, cable secure points
Material: ABS Plastic
Dimensions: 30”H x 14.42”W x 3.42”D
Package Includes:
1 x 30” Plastic Enclosure Main Unit
1 x 30” Hinged Door with Trim Ring
1 x Wiring Location Label
1 x Mounting Hardware & Installation Instructions
