Wavenet – 2U 19" Single‐Sided Horizontal Cable Manager - Plastic Finger Duct with Cover for 2‐Post and 4‐Post Server Racks, Metal – Black

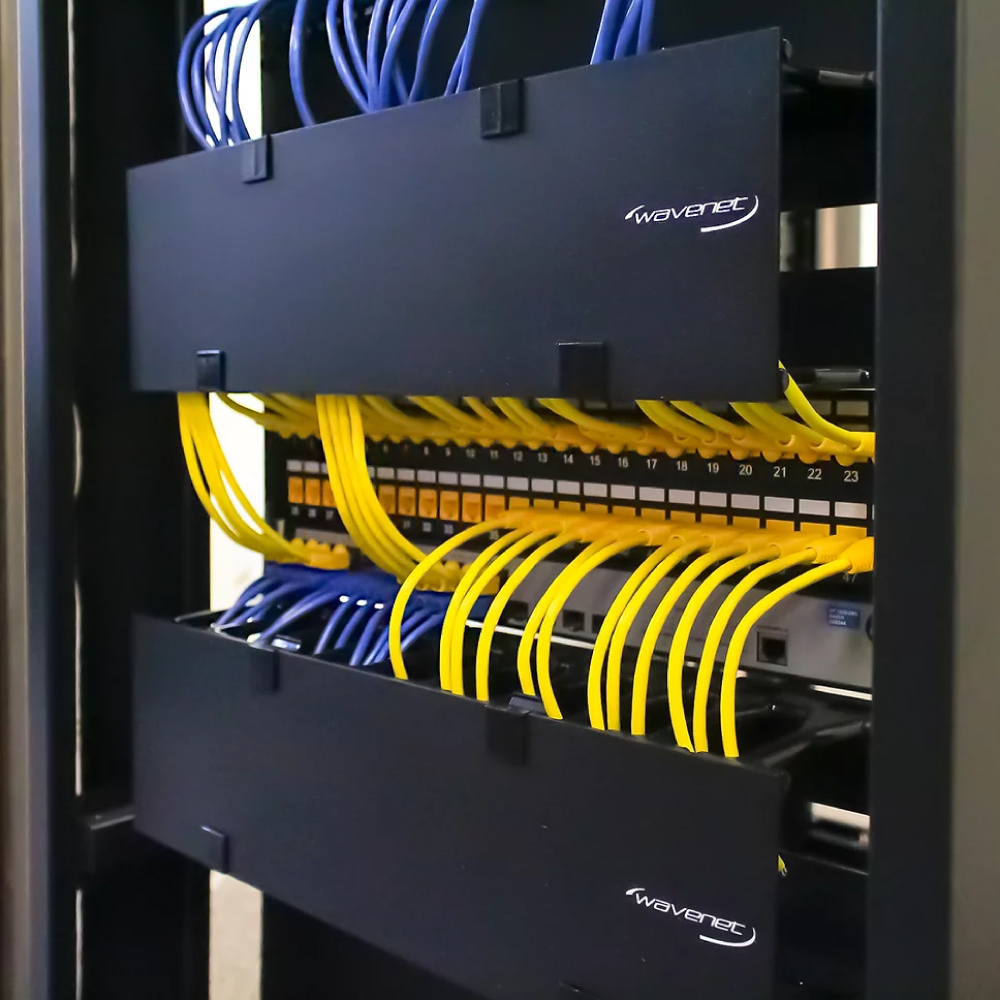

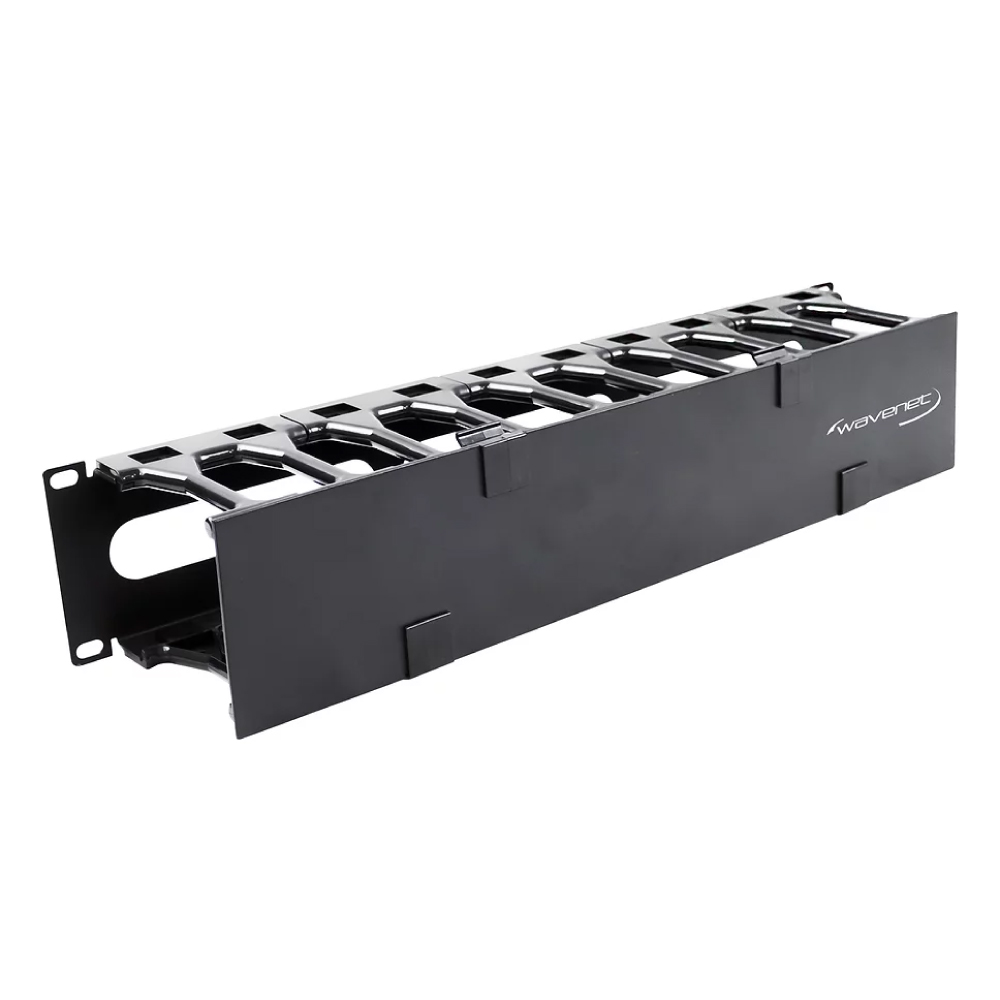

2U Horizontal Cable Manager (MDH-SSW-2U)
Cable management panel manages efficiently high densities structured cabling in data centers and telecommunication rooms, which allows the maximum amount of cables to be organized in a minimum amount of space. 2U cable management panel can increase the speed of installation or any configuration change and reduce cost for less energy usage.
This horizontal cable manager system is used with a patch panel or rack-mounted device to manage cables on front racks and draw cables away from equipment neatly. It can manage nearly any kind of cable – fiber, coax, patch cables, and more, making sure rack cables are well-organized and protected. Properly routing cables also improves airflow, which passively cools devices stored in your rack, helping to keep your equipment running at optimal temperatures.
Keep similar cables run together, making troubleshooting more efficient. It’s best to bundle cables together based on the type of cable. The second variation is when multiple servers or other equipment are housed together, it makes sense to keep these cables bundled together so it’s easier to perform maintenance and one of the most common options is to bundle cables based on their end destination.
Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel. Slotted fingers maximize the care and protection of the cables, keeping the structured cabling system unhurt and functional. Cover with snap hinges provides trouble-free access to cables.
Features:
19” wide with #12-24 threaded EIA hole pattern
Large slotted fingers design for high volume patch cords
The cover comes with (4) hinges for easy cable access
Cover can be opened from top or bottom
Compatible with 2-Post or 4-Post 45U racks
Dimensions: 19” W x 3.50” H x 4.5” D
EIA/ECA-310-E Compatible
Material: Steel/Plastic
Color: Black
Package Includes:
1 x 2U Single-Sided Cable Manager
1 x Single-Sided Plastic Cable Manager Cover
4 x #12-24 Screw
