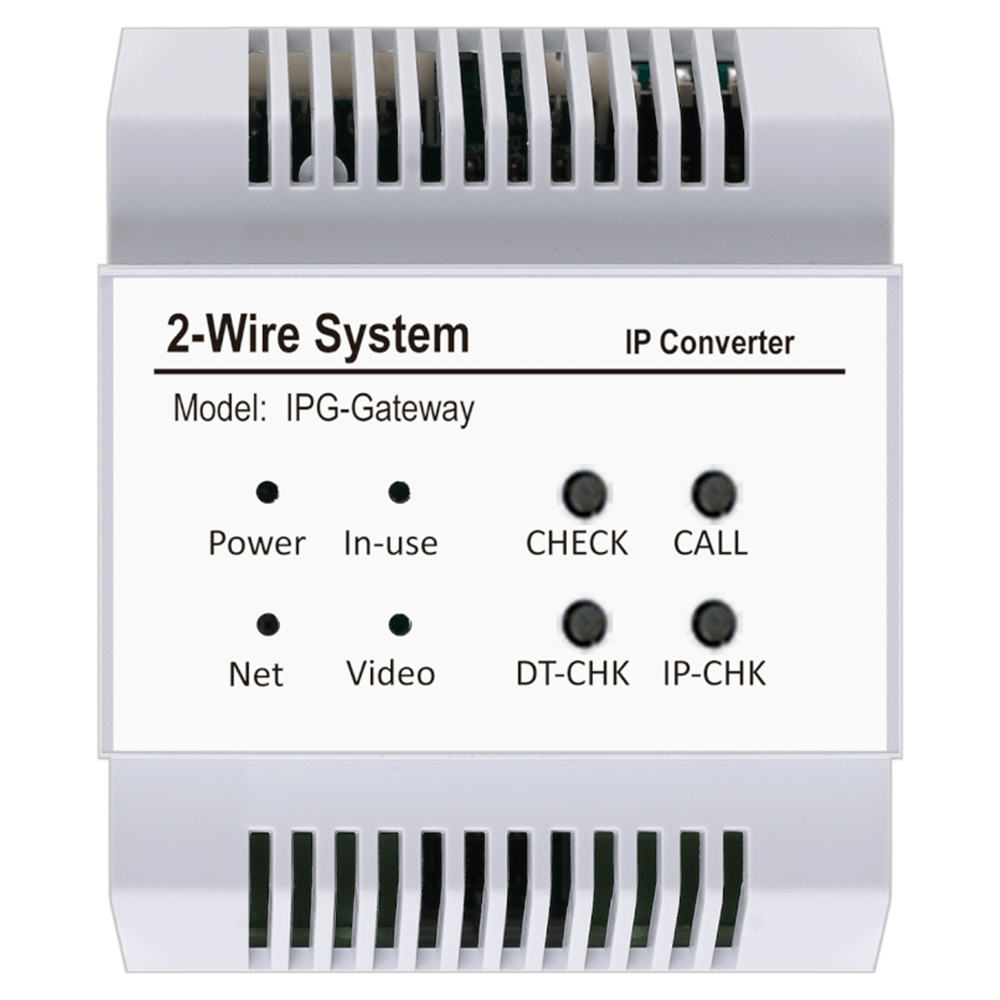

IP Network Gateway Converter Module – DT-IPG for 2-Wire Video Intercom System, App Support, SD-Card Slot, System Configuration
Two-Wire System Gateway Converter
The IPG module offers an easy solution if you want to expand the functionality of your video intercom system. Add video and snapshot storage and is particularly worthwhile if you use multiple monitors. Also, this module can connect the system to the Internet which allows users to configure the system and control access from the phone. The app is free, no need to pay a subscription every month or year, just install, set up, and use.
Features:
Connects the 2Easy 2-wire system to an IP network
Converts 2-Wire analog signal from the 2Easy 2 wire bus to Ethernet signals
Use as system router or IP network converter
Provides connection to a SIP server and diverts calls to a smartphone or tablet (Android and Apple iOS)
Allows remote smartphone or tablet control for communicating, unlocking, and monitoring
Provides image and video recording for single-family and multi-family buildings with individual storage folders for each apartment (SD card is required for video)
Configure using the DX Builder software
Connects to a local IP Network switch or router and creates a gateway between the 2-wire bus and the IP Network
Multiple DT-IPG modules can be used for larger systems
RJ45 Ethernet connection as well as 2-wire bus connections
Supported on DT-471, DT-17S, DT-47MG, and DT-433 Monitor Stations
The SIP server needs an active internet connection on the network
Specification:
Power: 2-wire bus (26V, no-polarity)
Consumption current: Standby 70mA, Max 190mA
LAN Ethernet: 10BASE-T, 100BASE-TX
Audio codec: G.711(64Kbps)
Video codec: H.264/AVC (VGA, QVGA)
Network Protocol: IPv4, TCP, UDP, RTSP, RTP, RTCP, IGMP, DHCP, NTP
Operating temperature: 32 °C ~ 104 °F
Dimension: 2.8*3.5*2.4(inch)
Din-Rail Mount
Package Includes:
1 x IP Gateway Converter (DT-IPG)
The IPG module offers an easy solution if you want to expand the functionality of your video intercom system. Add video and snapshot storage and is particularly worthwhile if you use multiple monitors. Also, this module can connect the system to the Internet which allows users to configure the system and control access from the phone. The app is free, no need to pay a subscription every month or year, just install, set up, and use.
Features:
Connects the 2Easy 2-wire system to an IP network
Converts 2-Wire analog signal from the 2Easy 2 wire bus to Ethernet signals
Use as system router or IP network converter
Provides connection to a SIP server and diverts calls to a smartphone or tablet (Android and Apple iOS)
Allows remote smartphone or tablet control for communicating, unlocking, and monitoring
Provides image and video recording for single-family and multi-family buildings with individual storage folders for each apartment (SD card is required for video)
Configure using the DX Builder software
Connects to a local IP Network switch or router and creates a gateway between the 2-wire bus and the IP Network
Multiple DT-IPG modules can be used for larger systems
RJ45 Ethernet connection as well as 2-wire bus connections
Supported on DT-471, DT-17S, DT-47MG, and DT-433 Monitor Stations
The SIP server needs an active internet connection on the network
Specification:
Power: 2-wire bus (26V, no-polarity)
Consumption current: Standby 70mA, Max 190mA
LAN Ethernet: 10BASE-T, 100BASE-TX
Audio codec: G.711(64Kbps)
Video codec: H.264/AVC (VGA, QVGA)
Network Protocol: IPv4, TCP, UDP, RTSP, RTP, RTCP, IGMP, DHCP, NTP
Operating temperature: 32 °C ~ 104 °F
Dimension: 2.8*3.5*2.4(inch)
Din-Rail Mount
Package Includes:
1 x IP Gateway Converter (DT-IPG)
