Intercom System for Apartment | 3 Apartment Video Doorbell | 2 Wire Buzzer System, 3 Monitors 4.3" - DK43331S/ID

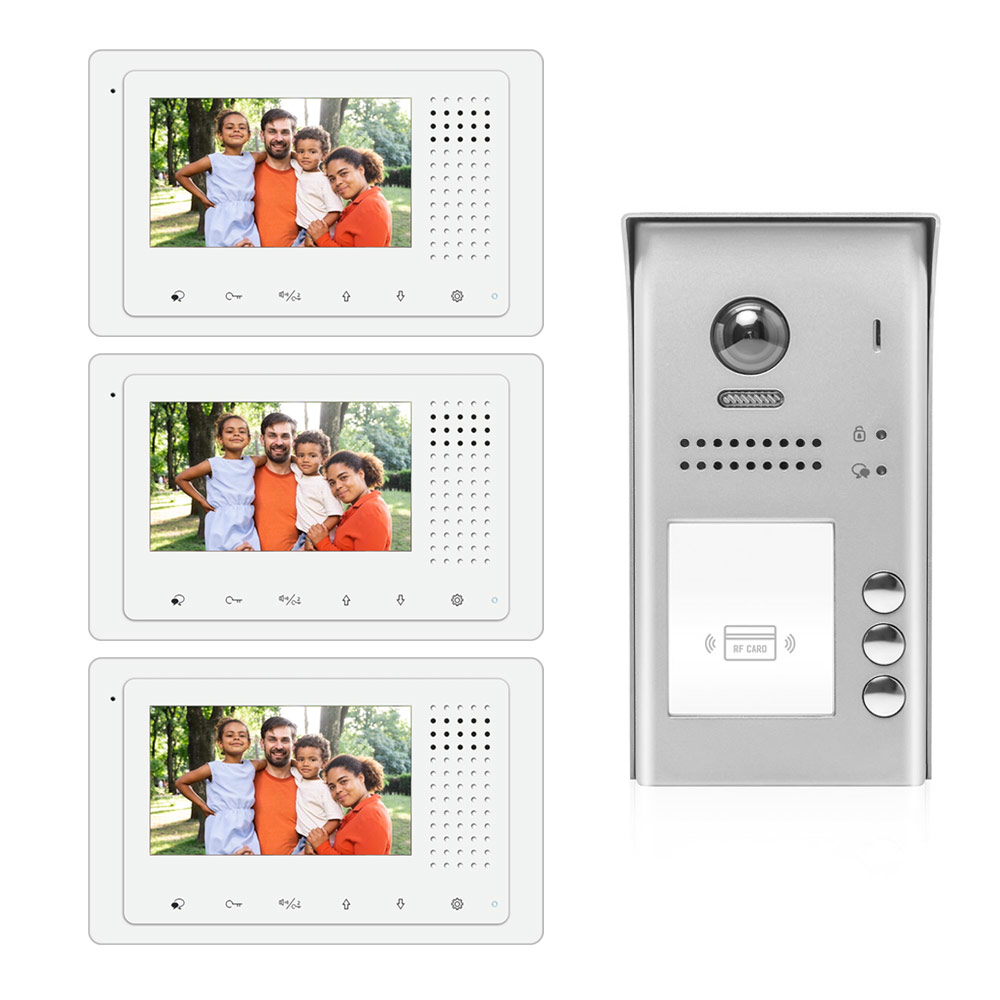

Three Apartment 2 Wire Video Intercom Doorbell System
The Video Door Intercom System is a revolution in the door entry market. This system features three attractive 4.3" full-color flat-panel displays, enabling the monitoring of the ultrawide camera mounted on the exterior door panel!
Replace your old existing 2 wires doorbell with Video Intercom System.
In short - how its works.
The exterior panel comes with 3 buttons and a camera for guests to call you. When the guest presses the Call button on the outdoor station, the monitor rings, at the same time, the screen displays the visitors' image, you can unlock the door with the "Unlock" button.
Entry Panel Main Features:
105° Fish-Eye Camera
Built-in card/fob reader for unlocking the entry (Key fobs included)
Non-polar, 2-wire system for simplified installation
Use with other 2-wire Components and Monitors
3 Buttons Model
Proximity access control
Equipped with terminals to add a motion detector for activating or to turn on light
Auto-sensing LED light for clear night vision
Zinc alloy housing, with electroplating and polishing treatment
Surface mounting with rain shield
Weather-resistant – IP54 rated
Large back-lit nameplate
Indicator lights during unlocking and talk
Door Release
Three 4.3" Color Monitor Stations:
Video intercom provides a reliable way to see and screen visitors and allows two-way communication before unlocking the door
Two-way guard-unit communication and calling monitors within the apartment
Simple and intuitive menu with touch sensor buttons
View and monitor Entry Panel camera(s)
Supports multiple Monitor Stations in each apartment
Low profile, surface-mounted
Dimensions: 5.51 H x 8.66 W x 0.71 D (inches)
Compatible with 2-wire system component
Supports from one to 256 apartments
Package DK43331S/ID – Includes:
3 x 4.3″ Monitor(DT-433)
1 x 3 Apartment Entry Panel(DT-607C/ID-S3)
1 x UL Approved Power Supply(DR-60-24)
1 x Power Separator(DT-DPS)
1 x 3A Relay(DS-ERL)
1 x DIN Rail
1 x AC Cord
6 x Key fobs(HL-3)
