Cmple - Universal Adjustable Projector Ceiling Mount, Projector Bracket with Extendable Length for LCD/DLP Projectors - Max 44lbs (Silver)
Universal Projector Ceiling Mount Wall Mount Bracket with Extendable Length – Silver

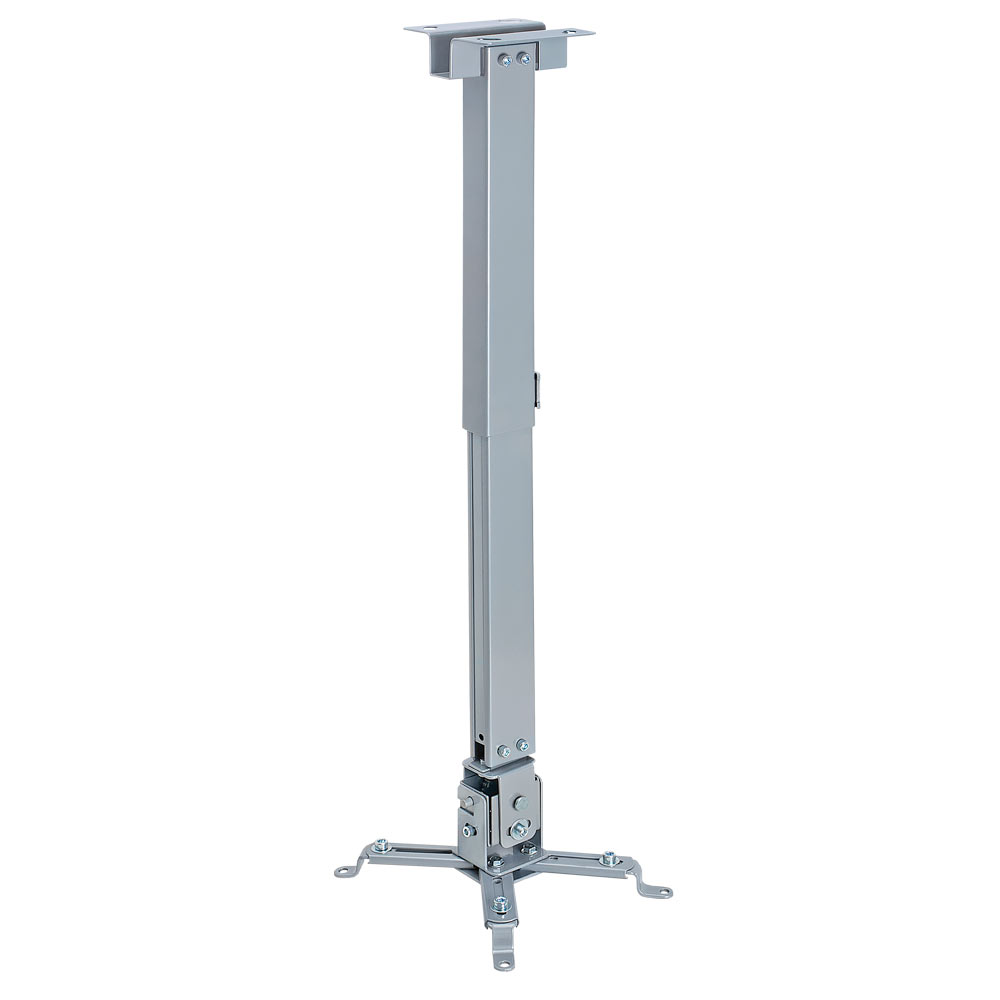

Cmple 1071-N is a solid steel ceiling bracket for most projectors up to 20kgs/44lbs. It offers flexible projector positioning with four adjustable support arms that can fit a wide range of mounting holes.
The quick release connector allows the projector to be installed quickly and then easily released for maintenance, without re-alignment. The adjustable height can meet different needs.

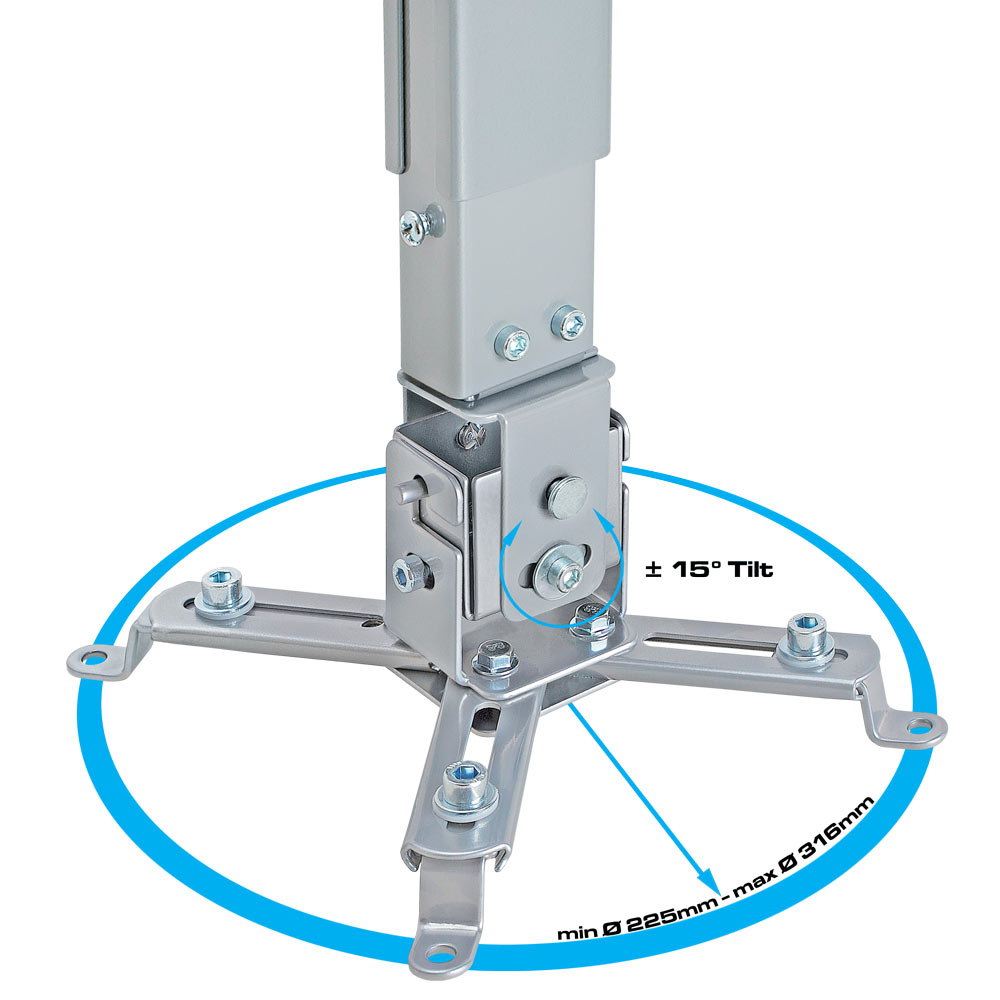

Tilting option: This bracket features tilting option. It allows to tilt your projector 15 degree up and down, which you may find very convenient if you need to change the angle of your projector.
Once you hang your projector on this bracket, the distance between the projector and the ceiling will be 16.9in (folded mode) or 25.6in (fully extended mode)
This will allow you to leave just enough space for the cables that will be plugged in to the projector, which will be useful in particular if the cables are not coming out of your wall directly behind the projector
Warning: The installer of these products must verify that the mounting surface, ceiling or wall, will safely support the combined weight of all attached equipment and hardware.
We will not be held liable for the improper use or installation of these products.
Specifications:
Aluminum ceiling projector brackets

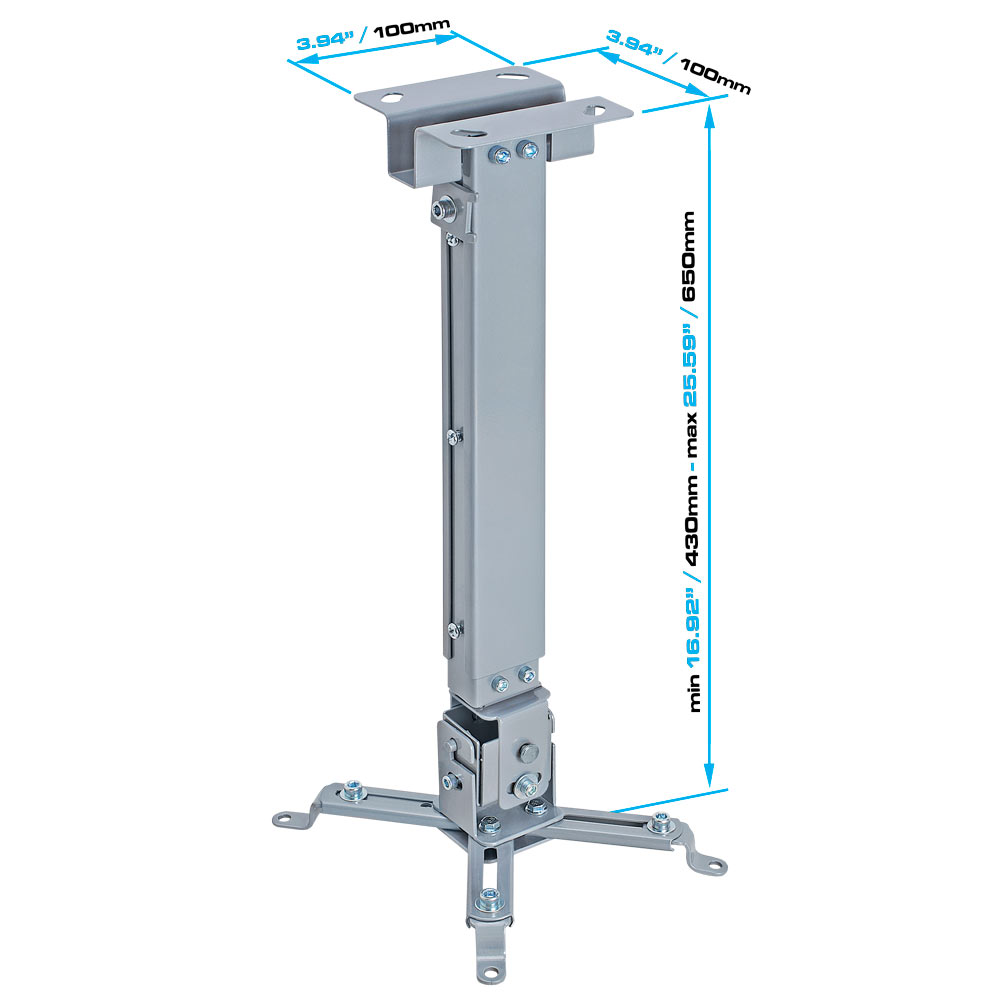

Profile: 430~650mm (16.9"~25.6")
Tilt Range: +15°~-15°
Swivel Range: +10°~-10°
Mounting Range: 225~316mm (8.9"~12.4")
Cable management: Yes
Max load capacity: 20kg/44lbs
Installation Manual included
Color: Silver
Cmple 1071-N is a solid steel ceiling bracket for most projectors up to 20kgs/44lbs. It offers flexible projector positioning with four adjustable support arms that can fit a wide range of mounting holes.
The quick release connector allows the projector to be installed quickly and then easily released for maintenance, without re-alignment. The adjustable height can meet different needs.
Tilting option: This bracket features tilting option. It allows to tilt your projector 15 degree up and down, which you may find very convenient if you need to change the angle of your projector.
Once you hang your projector on this bracket, the distance between the projector and the ceiling will be 16.9in (folded mode) or 25.6in (fully extended mode)
This will allow you to leave just enough space for the cables that will be plugged in to the projector, which will be useful in particular if the cables are not coming out of your wall directly behind the projector
Warning: The installer of these products must verify that the mounting surface, ceiling or wall, will safely support the combined weight of all attached equipment and hardware.
We will not be held liable for the improper use or installation of these products.
Specifications:
Aluminum ceiling projector brackets
Profile: 430~650mm (16.9"~25.6")
Tilt Range: +15°~-15°
Swivel Range: +10°~-10°
Mounting Range: 225~316mm (8.9"~12.4")
Cable management: Yes
Max load capacity: 20kg/44lbs
Installation Manual included
Color: Silver
